McDonnell Douglas F-15E Strike Eagle
48th Fighter Wing’s Heritage F-15E
The McDonnell Douglas (now Boeing) F-15E Strike Eagle is an American all-weather multirole strike fighter derived from the McDonnell Douglas F-15 Eagle. The F-15E was designed in the 1980s for long-range, high-speed interdiction without relying on escort or electronic-warfare aircraft. United States Air Force (USAF) F-15E Strike Eagles can be generally distinguished from other US Eagle variants by darker aircraft camouflage, conformal fuel tanks (CFTs) mounted along the engine intake ramps (although CFTs can also be mounted on earlier F-15 variants) and a tandem-seat cockpit.
The Strike Eagle has been deployed for military operations in Iraq, Afghanistan, Syria, and Libya, among others. During these operations, the strike fighter carried out deep strikes against high-value targets and combat air patrols and provided close air support for coalition troops. It has also been exported to several countries.
Pair of US Air Force Strike Eagles enroute to Belgian Air Force Days 2016
Design
The F-15E's deep-strike mission is a radical departure from the original intent of the F-15 since it was designed as an air-superiority fighter under the mantra "not a pound for air-to-ground." The basic airframe, however, proved versatile enough to produce a very capable strike fighter. The F-15E, while designed for ground attack, retains the air-to-air lethality of the F-15, and can defend itself against enemy aircraft.
The F-15E prototype was a modification of the two-seat F-15B. Despite its origins, it includes significant structural changes as well as more powerful engines. The aft fuselage was designed to incorporate the more powerful engines with advanced engine bay structures and doors, which incorporate Superplastic forming and diffusion bonding technologies. The back seat is equipped for a weapon systems officer (WSO, pronounced "wizzo") to work the air-to-ground avionics via multiple screens; these view the radar, electronic warfare, or thermographic cameras, monitor aircraft or weapons status and possible threats, select targets, and use an electronic moving map to navigate. Two hand controls are used to select new displays and to refine targeting information; displays can be moved from one screen to another using a menu of display options. Unlike previous two-place jets (e.g. the F-14 Tomcat and Navy variants of the F-4), whose back seat omitted flying controls, the F-15E's back seat is equipped with its own stick and throttle so the WSO can take over flying, albeit with reduced visibility.
For extended range, the F-15E is fitted with two conformal fuel tanks (CFTs) that hug the fuselage to produce lower drag than conventional underwing/underbelly drop tanks. They carry 750 U.S. gallons (2,800 L) of fuel, and house six weapons hardpoints in two rows of three in tandem. Unlike conventional drop tanks, CFTs cannot be jettisoned, thus increased range is a trade-off for increased drag and weight compared to a "clean" configuration.

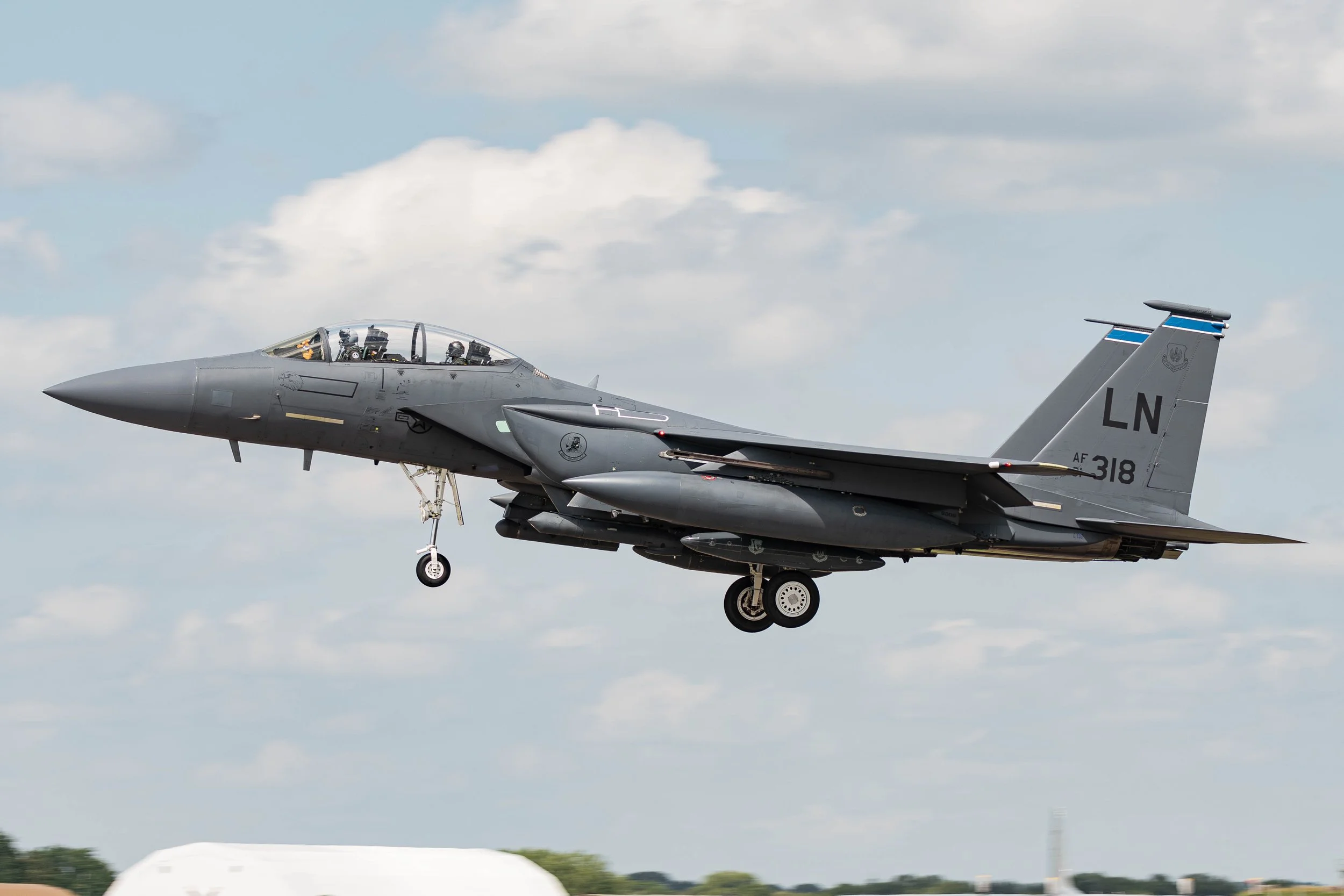

US Air Force F-15E at RIAT 2022
The tactical electronic warfare system (TEWS) integrates all countermeasures on the craft: radar warning receivers, radar jammer, radar, and chaff/flare dispensers are all tied to the TEWS to provide comprehensive defence against detection and tracking. This system includes an externally mounted ALQ-131 ECM pod which is carried on the centerline pylon when required. The MIDS Fighter Data Link Terminal, produced by BAE Systems, improves situational awareness and communications capabilities via the Link 16 datalink.
The APG-70 radar allows crews to detect ground targets from longer ranges; one feature is that, after a sweep of a target area, the crew may freeze the air-to-ground map then switch to air-to-air mode to scan for aerial threats. During air-to-surface weapon delivery, the pilot is capable of detecting, targeting, and engaging air-to-air targets while the WSO designates ground targets.
Its inertial navigation system uses a laser gyroscope to continuously monitor the aircraft's position and provide information to the central computer and other systems, including a digital moving map in both cockpits. The low-altitude navigation and targeting infrared for night (LANTIRN) system is mounted externally under the engine intakes; it allows the aircraft to fly at low altitudes, at night, and in any weather conditions, to attack ground targets with a variety of precision-guided and unguided weapons. The LANTIRN system gives the F-15E exceptional accuracy in weapons delivery day or night and in poor weather and consists of two pods attached to the exterior of the aircraft. At night, the video picture from the LANTIRN can be projected on the head-up display (HUD), producing an infrared image of the ground.
RAF Lakenheath based F-15E Strike Eagle and the F-35A Lightning II
The AN/AAQ-13 navigation pod contains a terrain-following radar which allows the pilot to safely fly at a very low altitude following cues displayed on a HUD; it also can be coupled to the autopilot to provide "hands off" terrain-following capability. This pod also contains a forward-looking infrared system which is projected on the HUD, typically used during nighttime or low-visibility operations. The nav pod is installed beneath the right engine intake. The targeting pod contains a laser designator and a tracking system that mark an enemy for destruction as far away as 10 mi (16 km). Once tracking has started, targeting information is automatically handed off to infrared homing air-to-surface missiles or laser-guided bombs. The targeting pod is mounted beneath the left engine intake; configurations may be either the AN/AAQ-14 Target Pod, AN/AAQ-28 LITENING Target Pod, or the AN/AAQ-33 Sniper Advanced Targeting Pod.
The F-15E carries the most air-to-ground weapons in the USAF inventory. It is also armed with AIM-9 Sidewinders and AIM-120 AMRAAMs, retaining the counter-air capabilities of its Eagle lineage, being fully capable of Offensive-Counter-Air operations. Like the F-15C, it also carries an internally mounted General Electric M61A1 20 mm cannon with 500 rounds, which is effective against enemy aircraft and "soft" ground targets.
Since 2004, South Korean firm LIG Nex1 has been manufacturing the F-15's Head-up display; a total number of 150 HUDs were delivered by 2011. LIG Nex1 had been a participant in the F-15K program as a subcontractor to Rockwell Collins. LIG Nex1 is also preparing to manufacture F-15's new multi-function display and flight control computer. Also since 2004, Korea Aerospace Industries (KAI) has produced the F-15's wings and forward fuselages; in 2008, KAI established another production line for Singapore's F-15SG. KAI is involved in the design and manufacture of the Conformal Weapons Bay (CWB) for the F-15 Silent Eagle.
The engines used on early aircraft are Pratt & Whitney F100-PW-220. Later batches feature the more powerful P&W F100-PW-229 engines. Saudi Arabian and Israeli aircraft originally used P&W F100-229 engines. In 2008, Saudi Arabia decided to re-engine their F-15S and F-15SA fleets with General Electric F110-GE-129 engines. The South Korean F-15K had two different engines; the first batch are powered by GE F110 engines, while the second batch are powered by P&W F100 engines. The Singapore Air Force equipped their F-15SG fleet with GE F110 engines.
The F-15E first flew on the 11th of December 1986
