PZL SW-4 Puszczyk

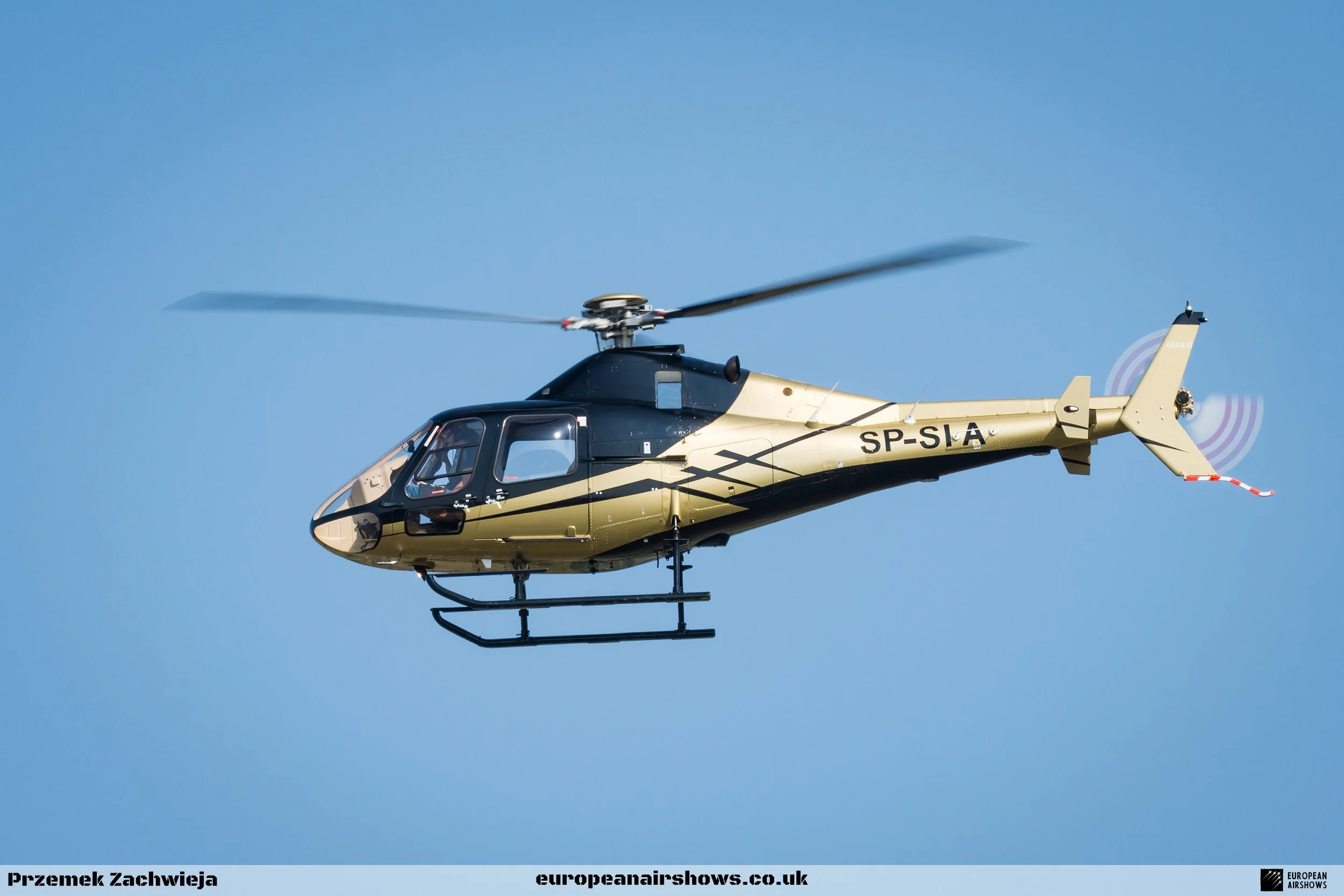

The PZL SW-4 Puszczyk, which translates to “tawny owl” in English, is a Polish light single-engine multipurpose helicopter developed and manufactured by PZL-Świdnik. The helicopter’s development was notably protracted, but it eventually entered service in 2002, with its primary operator being the Polish Armed Forces. Over time, the SW-4 was further developed by PZL-Świdnik and its corporate parent, AgustaWestland, into an optionally piloted vehicle known as the SW-4 Solo. From 2016 onwards, the helicopter has been marketed to civil operators as the AW009, while retaining the SW-4 designation for the military market.

The design of the SW-4 helicopter traces back to the 1960s. Initially, production was halted due to the demand for military helicopters from various Warsaw Pact nations. However, by around 1981, development work at PZL-Świdnik resumed on a new light utility helicopter capable of seating four to five people. The original design featured a 300 kW (400 shp) PZL Rzeszow GTD350 turboshaft engine and was projected to achieve a top speed of about 240 km/h (130 knots) and a maximum range of approximately 900 km (485 nautical miles) with an auxiliary fuel tank.

The collapse of the Soviet Union and the subsequent political restructuring in Europe, particularly among former Warsaw Pact countries, allowed PZL-Świdnik to redesign the SW-4. This redesign included switching to a new foreign-built powerplant, the Allison (now Rolls-Royce) Model 250 turboshaft engine, which was 13% more powerful and consumed 30% less fuel than the originally intended GTD350. Other significant changes to the design included the adoption of epoxy resin-based composite materials for the fuselage, further streamlining the fuselage, and revising the tail and tail boom, which were primarily made of aluminum.

In December 1994, the project advanced to ground testing of a non-flying prototype. Subsequently, two flight-capable prototypes were assembled to support the development program. Although the first prototype was scheduled to perform its initial flight in January 1995, this milestone was delayed due to vibration issues during engine runs. The SW-4 eventually made its first flight on 26 October 1996, with an official first flight following on 29 October 1996. By May 2002, the two prototypes had accumulated a total of 640 flight hours. PZL-Świdnik aimed for US Federal Aviation Administration (FAA) FAR Part 27 certification, targeting the production of models by 1999.

However, a decision to redesign the main rotor head resulted in considerable delays to the flight testing program. During this period, other modifications were made to the rotorcraft, including extending the horizontal stabilizer and improving the hydraulic systems. By 2002, the first production model SW-4, equipped with the Rolls-Royce engine, was nearing certification from the Polish civil aviation authority. Certification for other markets was to be made upon customer request, with the helicopter targeting a price of $700,000 at the time. On 1 October 2002, serial production of the SW-4 formally began. By 27 September 2007, the SW-4 received type certification from the European Aviation Safety Agency (EASA). Following the certification of the Rolls-Royce model, PZL-Świdnik pursued a separate re-certification for a modified SW-4 fitted with a Pratt & Whitney Canada PW200 powerplant as an alternative option.

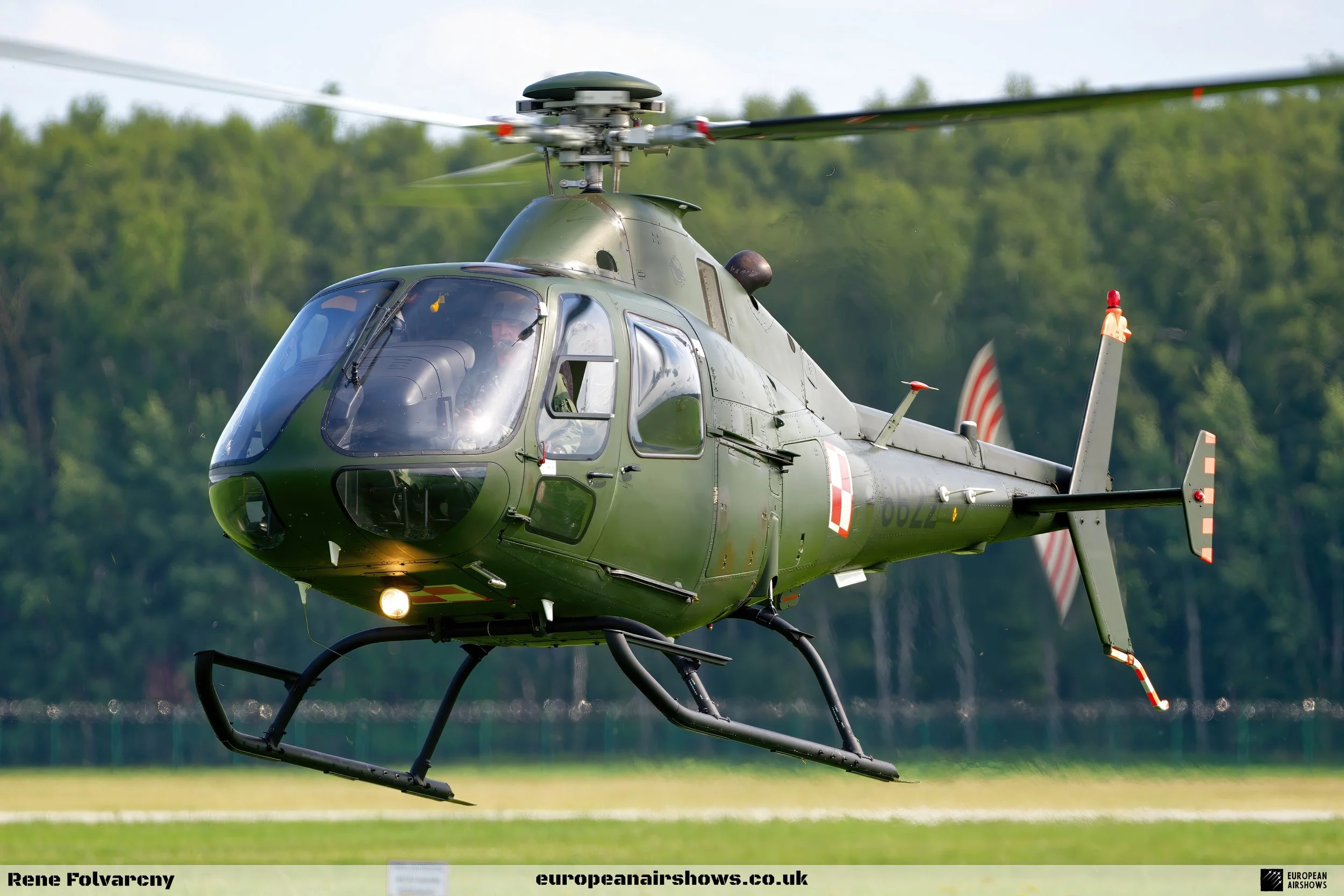

The SW-4 was expected to fulfill a range of utility missions, including civil and executive transport, medevac, police, border patrol duties, and military pilot training tasks. However, for several years, the Polish military was the type’s only customer, using 24 SW-4 helicopters, designated as Puszczyk, for training purposes at the Center of Aviation Education and Training in Dęblin.

In January 2004, Indonesian Aerospace (IAe) began negotiating a risk-sharing agreement to set up a local assembly line for the SW-4, contingent upon an order from the Indonesian National Police. By October 2005, PZL-Świdnik was in talks with Rolls-Royce about using a more powerful variant of the SW-4’s Model 250C20R powerplant. At the same time, the development of a stretched, twin-engine version of the SW-4 was under active consideration, dependent on export sales of the current model. In February 2009, Rolls-Royce announced discussions with PZL-Świdnik about using its newly developed Rolls-Royce RR500 engine on future derivatives of the SW-4.

PZL-Świdnik’s parent company, AgustaWestland, chose the SW-4 as the basis for an optionally manned rotorcraft, the SW-4 Solo. Development of an optionally-manned demonstrator began in 2011, and the SW-4 Solo was first showcased at the MSPO 2012 in Poland as the “SW-4 Solo” RUAS/OPH platform (Rotorcraft Unmanned Air System/Optionally Piloted Helicopter). In 2013, AgustaWestland received a Royal Navy contract for the SW-4 Solo’s development as part of the UK’s RWUAS (Rotary Wing Unmanned Air System) Capability Concept Demonstrator (CCD) program. The development of the SW-4 Solo was also supported by the Italian Ministry of Defence’s Directorate for Air Armaments under the Italian National Military Research Plan. By September 2015, the SW-4 Solo had completed 26 demonstration flights, including simulated shipboard integration tests. In November 2015, AgustaWestland declared the SW-4 Solo ready for sale.

In 2006, PZL-Świdnik entered into an agreement with China’s Jiujiang Hongying Technology Development Ltd. to establish an SW-4 assembly line in Jiujiang. By December 2008, the SW-4 received type certification from the Civil Aviation Administration of China. The first co-produced SW-4 made its maiden flight in February 2010, and an agreement to produce 150 helicopters for the Chinese market was announced. By March 2015, five co-produced SW-4s had been delivered to Chinese customers.

In February 2016, an upgraded civil market model of the SW-4, designated as the AW009, was revealed at Heli-Expo. This variant featured enhancements for increased smoothness and control authority, including the integration of a mass vibration absorber, a Genesys Aerospace glass cockpit common to the larger AgustaWestland AW119 Koala, hydraulic improvements, and an optional upgraded Model 250-C30R engine.

The SW-4 is powered by a single 335 kW (450 shp) Rolls-Royce Model 250C20R/2 turboshaft engine, which drives the helicopter’s three-blade main rotor and two-blade tail rotor. An alternative engine option is the 460 kW (615 shp) Pratt & Whitney Canada PW200/9 turboshaft engine. The main rotor is fully articulated, and the rotor blades on both the main and tail rotors are composed of composite materials. The helicopter uses hydraulic flight controls and is capable of flying under both day and night visual flight rules conditions.

The SW-4 can transport up to five people, including the pilot, in crashworthy seats. Passengers are provided with a high level of external visibility and comfort, and an optional vibration absorption system is available. The main cabin can be rapidly reconfigured between passenger and cargo-carrying configurations and is accessed via two sliding doors on either side of the cabin. A dedicated baggage compartment is also present beneath the main cabin. PZL-Świdnik emphasized multi-role operations during the SW-4’s development, making it well-suited for passenger transport, primary and advanced training, patrol, and surveillance missions.

Various optional equipment can be installed on the SW-4, including removable co-pilot flight controls, a wire strike protection system, a forward-looking infrared (FLIR) sensor system, instrument flight rules (IFR) training fittings, a radio altimeter, an emergency medical system, a moving map, external loudspeakers and/or searchlight, flotation gear, and an external cargo sling. Much of the external equipment is designed to be mounted on external extension arms, and the SW-4 can carry a useful payload of up to nearly 600 kilograms. Both basic and advanced trainer variants of the SW-4 have been developed to conform with NATO standards and military pilot training regulations. The helicopter is promoted as possessing a high level of inherent flight stability and safety, with the advanced model being compatible with night vision goggles (NVG) and equipped with an emergency simulation unit.
